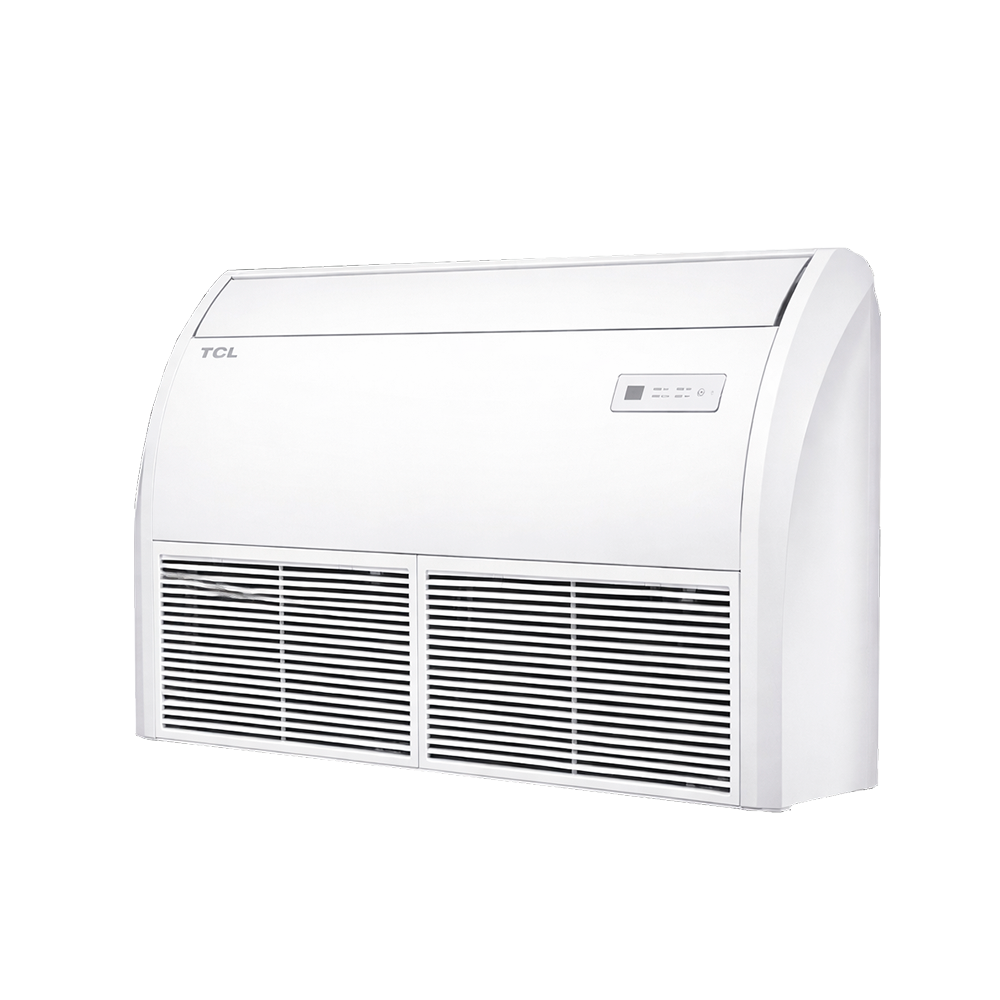

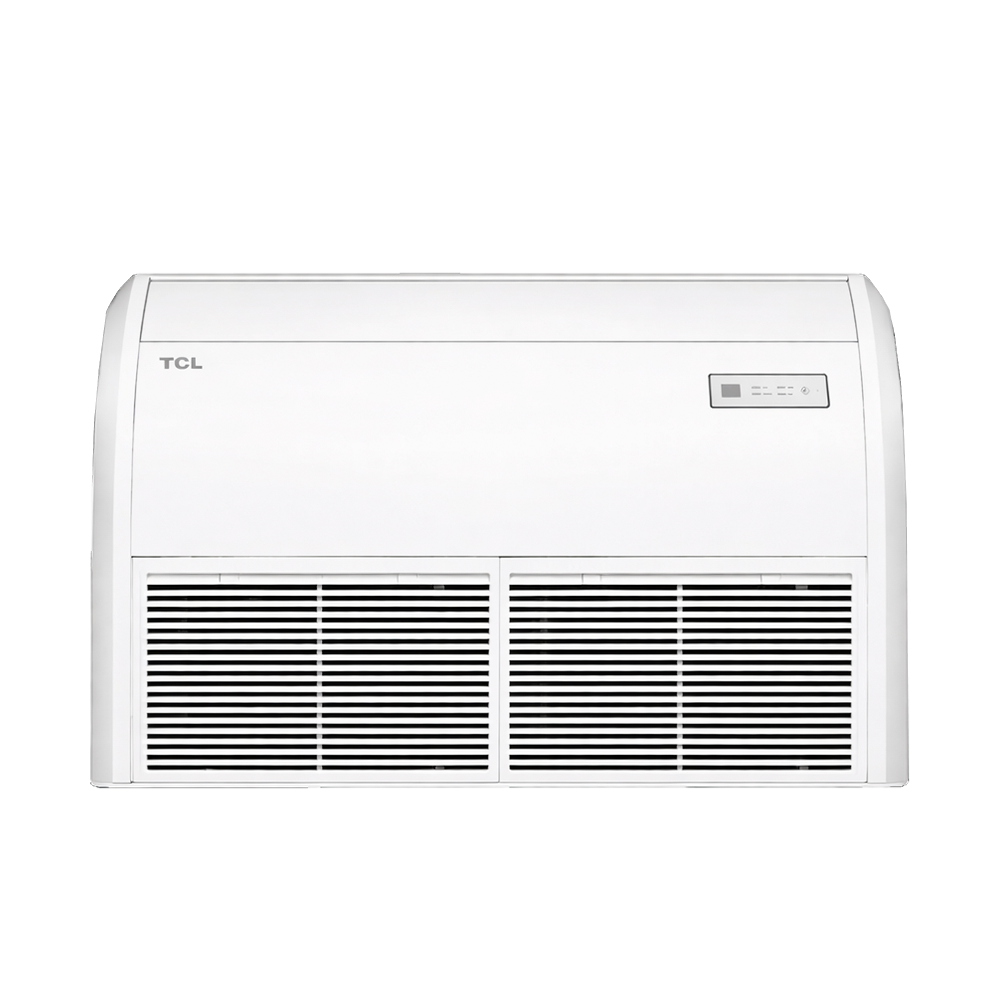

TCL 3.5 HP Ceiling & Floor Air Conditioner (R410A) – Model TCC-36ZHRA/DV(02)

The TCL TCC-36ZHRA/DV(02) is a 3.5 HP light-commercial indoor unit rated at 36,000 BTU/h of cooling and charged with R410A refrigerant. Its defining feature is installation flexibility: the same unit can be suspended horizontally under a ceiling or stood vertically against a wall at floor level, which makes it the practical answer in buildings with no ceiling void and no space for a cabinet unit.

The body is deliberately slim — around 230–235 mm thick — so it does not intrude into the room, and a cross-flow fan design gives an ultra-long air supply of up to 20 m with a 104° wide swing pattern. Seven fan speed settings let the airflow be tuned for wind-sensitive occupants, and condensate can be drained from either the left or the right side to suit the building.

Key Features:

• Cooling Capacity: 3.5 HP, 36,000 BTU/h

• Refrigerant: R410A

• Installation: Dual mounting — ceiling-suspended or floor-standing

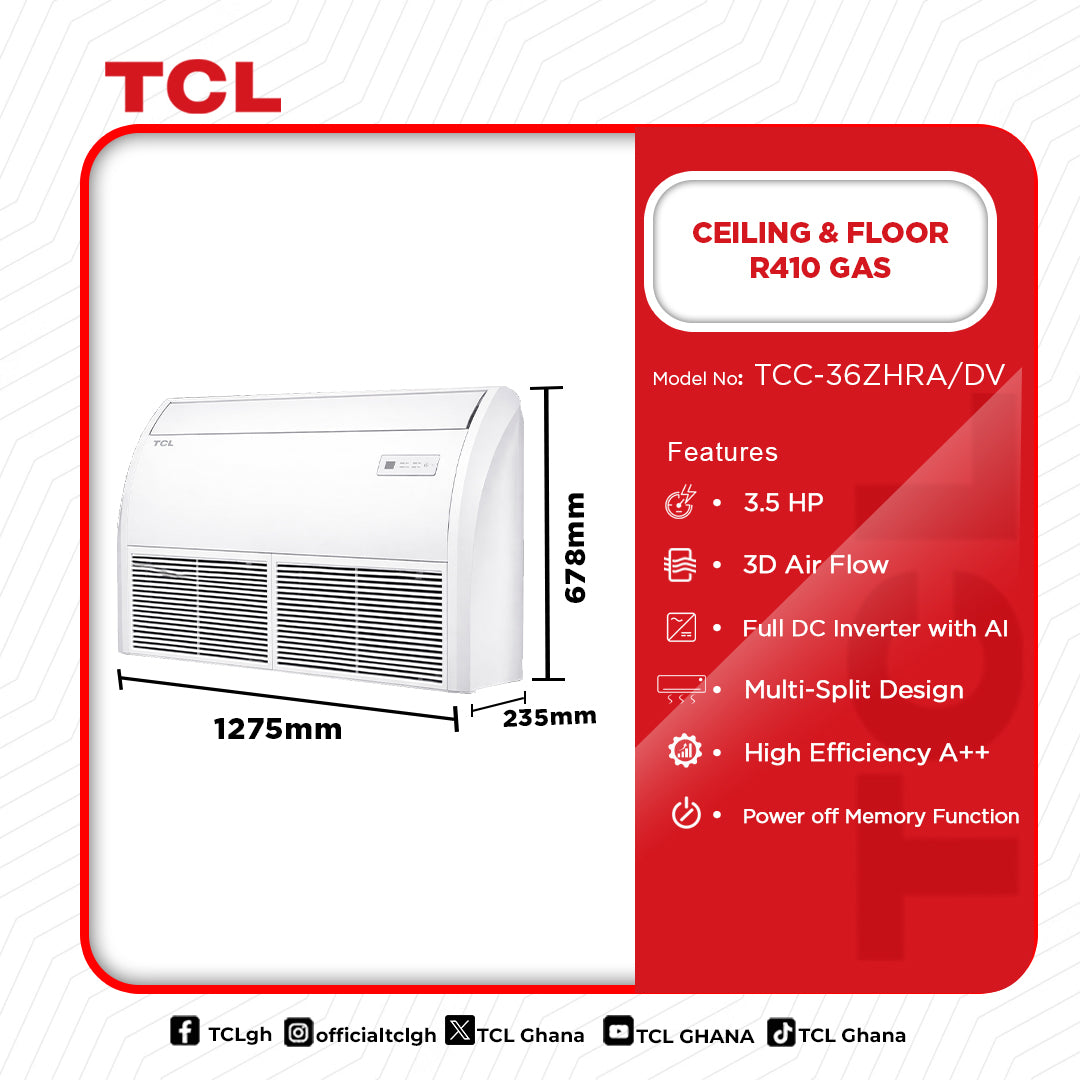

• Body Depth: Ultra-slim, approximately 230–235 mm

• Air Supply: Up to 20 m ultra-long air throw

• Air Distribution: 104° wide-range airflow with swing

• Fan Control: Seven-gear fan speed adjustment

• Power Supply: Single phase, 220–240V~/50Hz

• Condensate: Drain from left or right side

• Protection: Pressure, temperature and current protection, plus auto-restart and LED display with error codes

Why Choose This Air Conditioner:

• The dual ceiling-or-floor mounting solves the most common site problem in Ghanaian commercial buildings — no suspended ceiling for a cassette and no floor area to spare for a cabinet.

• A 20 m air supply distance means one unit can reach the far end of a long room such as a classroom, corridor-style shop or church nave.

• Seven fan speeds allow the airflow to be turned down where people sit directly in the air stream.

• LED error codes and built-in pressure, temperature and current protection make faults quicker to diagnose and reduce the chance of compressor damage.

• Sold and supported by Xsell Ghana, an authorised TCL dealer.

A flexible light-commercial unit for classrooms, churches, clinics, long retail units and offices where neither a cassette nor a floor cabinet will fit.
